| Engine Series: |
6CT8.3-C |
| Engine Type: |
6 Cylinders in Line |
| Displacement: |
8.3 L |
| Rated Speed: |
1950rpm-2200rpm |
| Rated Power: |
108kW(145HP)-264kW(360HP) |
| Aspiration Method: |
Turbocharged |
| Emission Standard: |
Euro I、Euro II |
| Fuel Consumption: |
210g/kW.h-235g/kW.h |
| Packing Size(L*W*H): |
1560*910*1400 |
| Gross Weight: |
700 Kg |
| Delivery Time: |
7-15 working days |
| Payment Terms: |
T/T ,L/C |
|
|
|

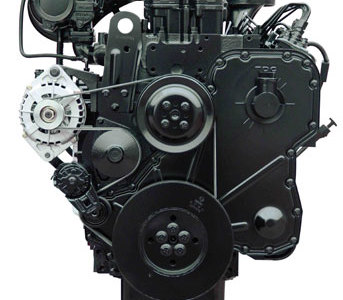

DCEC 6CT8.3-C Diesel Engine for Fire Pump Application
| General Information of DCEC 6CT8.3-C Diesel Engine for Fire Pump Application |
| Engine Series |
6CT8.3-C |
| Engine Type |
6 Cylinders,In Line |
| Displacement |
8.3L |
| Bore*Stroke(mm) |
114*135 |
| Compression Ratio |
18.0:1 |
| Net Weight(with flywheel&alternator) |
637kg |
| Overall Dimension(L*W*H) |
1360mm*800mm*1200mm |
| Technical Specification of DCEC 6CT8.3-C Diesel Engine for Fire Pump Application |
| Certification |
Euro I、Euro II |
| Aspiration |
Turbocharged |
| Fuel System |
Direct Injection |
| Starting Method |
Electric/Mechanical |
| Eletrical System(Starter Motor/Alternator) |
12V/24V |
| Governor Type |
Electronic/Mechanical |
| Cooling Method |
Water Cooled |
| Performance Data of DCEC 6CT8.3-C Diesel Engine for Fire Pump Application |
| Rated Power |
108kW(145HP)-264kW(360HP) |
| Rated Speed |
1950rpm-2200rpm |
| Fuel Consumption |
210g/kW.h-235g/kW.h |
| Idel Speed |
1000rpm |
| Max. Continuous Running Altitude |
2000 m |
| Model of DCEC 6CT8.3-C Diesel Engine for Fire Pump Application |
| Models Available from DCEC China Joint Venture |
Rated Power@Rated Speed |
| 6CTA8.3-C145 |
145HP@1900rpm |
| 6CTA8.3-C175 |
175HP@1850rpm |
| 6CTA8.3-C180 |
180HP@2000rpm |
| 6CTA8.3-C195 |
195HP@1900rpm |
| 6CTA8.3-C205 |
205HP@1850rpm |
| 6CTA8.3-C212 |
212HP@2200rpm |
| 6CTA8.3-C215 |
215HP@2200rpm |
| 6CTA8.3-C230 |
230HP@2200rpm |
| 6CTA8.3-C240 |
240HP@2200rpm |
| 6CTA8.3-C260 |
260HP@2200rpm |
| 6CTAA8.3-C195 |
195HP@1950rpm |
| 6CTAA8.3-C215 |
215HP@2200rpm |
| 6CTAA8.3-C260 |
260HP@2200rpm |
| 6CT9.5-C220 |
220HP@2200rpm |
| 6CTAA9.5-C360 |
360HP@2200rpm |
Click model name to check detailed specifications of each engine: 6CTA8.3-C145,6CTA8.3-C175,6CTA8.3-C180,6CTA8.3-C195,6CTA8.3-C205,6CTA8.3-C212,6CTA8.3-C215,6CTA8.3-C230,6CTA8.3-C240,6CTA8.3-C260,6CTAA8.3-C195,6CTAA8.3-C215,6CTAA8.3-C260,6CT9.5-C220,6CTAA9.5-C360.
We can also supply genuine brand new spare parts for this model. For more info click here: DCEC 6CT8.3-C spare parts.
/**/
